By default, the RMS connection type in Teltonika routers is set to "Enabled", meaning the router attempts to establish an RMS connection to Teltonika every 2 to 5 minutes over a period of 14 days. Here are all the available RMS "Connection type" options:
| Enabled | RMS functionality is always on. When disconnected from RMS, the device will try connecting every 2-5 minutes (every 2 minutes the first hour; then every 5 minutes). If the device is disconnected from RMS for 14 days, it will go into Standby mode. When trying to connect to rms without internet connection, the router will try to reestablish connection every 10 seconds. |
| Standby | The device tries to establish a connection with the server infrequently (6 hours in-between attempts). This is done in order to reduce mobile traffic. In order to start using RMS, user intervention is not necessary from the device's side. Worst case scenario - RMS connection will be established 6 hours after the device was added to RMS. |
| Disabled | RMS functionality is completely disabled; therefore, no connection attempts are made. In order to start using RMS, the user must enable the service on the device's side. |

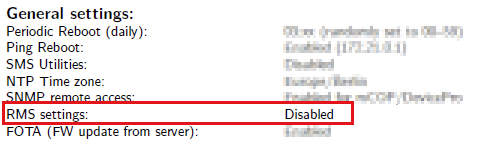

Since many users do not use the RMS functionality at all, routers preconfigured by Wireless Logic mdex usually have the RMS connection type set to "Disabled" or "Standby" to reduce unnecessary mobile data traffic. You can find the RMS status at the time of delivery of the router in the router configuration insert:
If the RMS preset in the router is not suitable for your use case, you can adjust the RMS connection type yourself.
Set Teltonika RMS Connection Type in the Router
- Log in to the router's WebUI, see also Local Access to the Router Web Interface (WebUI)
-

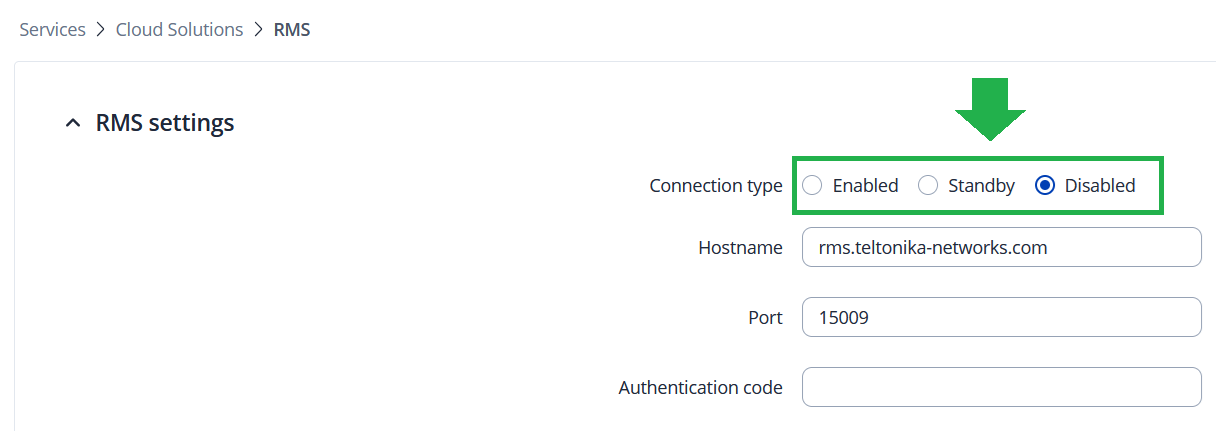

Under Services -> Cloud Solutions -> RMS, you can set the RMS connection type at Connection type:
