Local Access to the Router Web Interface (WebUI)

Please follow these steps to access the router's web interface (WebUI) for configuration:

1. Set your PC's IP address within the router's IP range.
   • For Windows network adapter setup, see here.
   • If the router has an enabled DHCP server, set your PC to obtain an IP address automatically.
     Important hints:
     • If the DHCP server assigns an IP already in use, remove the conflicting device. The IP will be freed after the lease expires or router restart.

     • If the router has a mobile data connection, assign a fixed IP without a default gateway to prevent unintended internet access and potential data charges.



2. Plug the PC's network cable into any LAN port on the router.

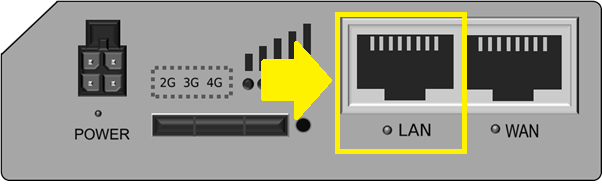

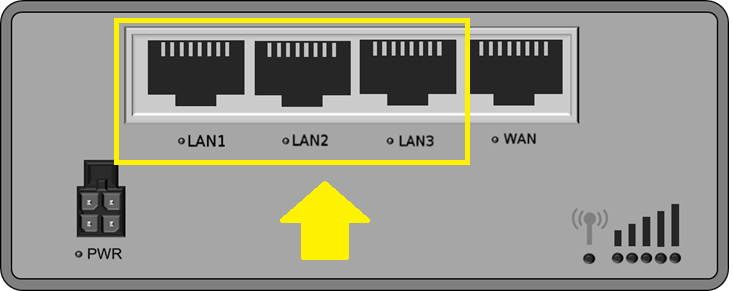

   • All LAN ports on Teltonika routers are suitable.

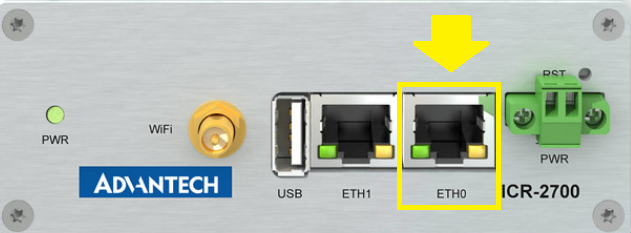

   • For Advantech routers, by default only the ETH0 port is enabled as LAN.

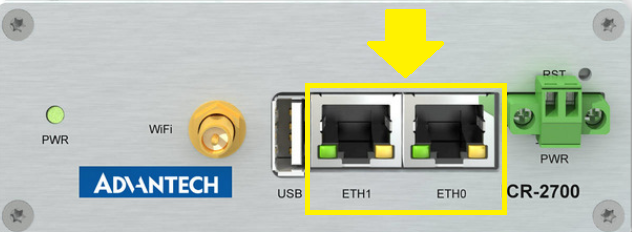

   • For Advantech routers preconfigured by Wireless Logic mdex, usually both ETH ports are enabled "as bridge" and can be used equivalently.





3. Open a web browser and enter the router’s LAN IP address to access the login page of the web interface (WebUI).

   • If you enter only the LAN IP address (192.168.1.1) in the browser, it first connects via http://192.168.1.1 on HTTP port 80. New router firmware then automatically redirects to the router’s HTTPS server.
   • By default, the router's web interface (WebUI) is accessible via HTTPS at https://192.168.1.1 (port 443).
   • If the router was preconfigured by Wireless Logic mdex, the Teltonika router's HTTPS server runs on port 4444, accessible at https://192.168.1.1:4444.

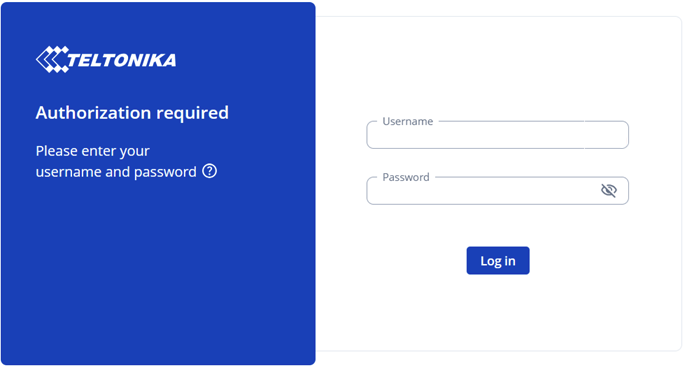

   The router's login page will open:

   Teltonika router:



   Advantech router:





4. Enter your username and password to access the router’s web interface (WebUI).
   • Username: admin (Teltonika router) | root (Advantech router)
   • Password: Please enter the current router password.
     • If the router has been reset to factory settings, the standard password printed on the device label on the underside of the router applies.
     • If the router has been preconfigured by Wireless Logic mdex, a secure password has already been set, which you can find on the enclosed configuration insert and additional label.
