Below you will find information on the power supply of the respective routers:
Teltonika Router
Advantech Router
Teltonika Router

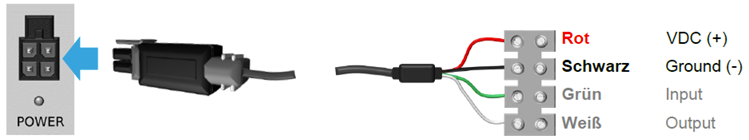

The power supply of the Teltonika router can be done either with the included power adapter or with an external power supply when using the optionally available power connection cable.
Do not exceed the router's voltage limit!

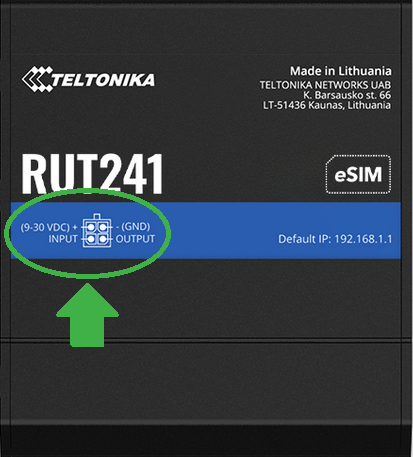

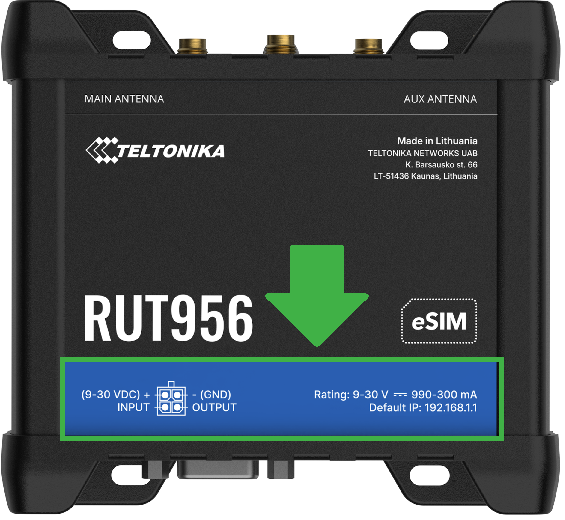

The required and permissible voltage varies depending on the router model. The permissible voltage values can be read on the top of the casing, see examples:
The power consumption of the routers varies depending on the model and utilisation. Especially when using an external power source, it is important to ensure that the router is reliably and sufficiently supplied. The power specifications marked on the included power adapter serve as a valuable guide to ensure that the power supply meets the device’s requirements.
Detailed information on the power consumption and utilisation of the router models can be found on the official Teltonika homepage at https://wiki.teltonika-networks.com/view/Power_Consumption.
Advantech Router
The power supply of the Advantech router can be done either with the included power adapter or with your own power supply.

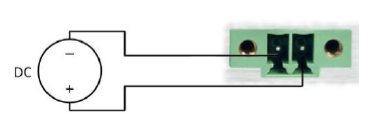

The suitable power plug with screw terminals is included in the router’s delivery.
Do not exceed the router's voltage limit!

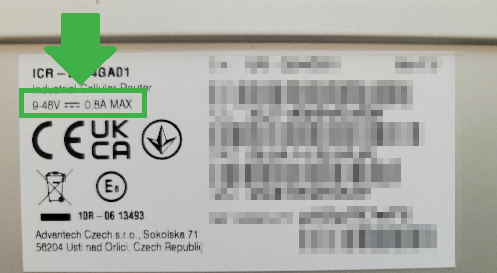

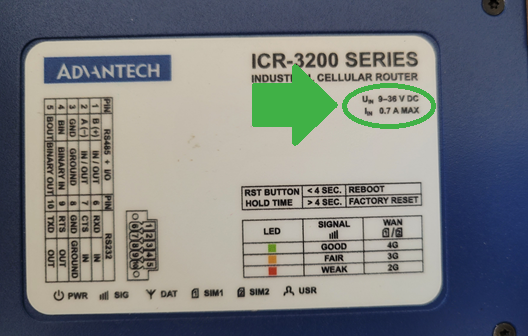

The required voltage and power consumption vary depending on the router model. Especially when using an external power source, it is important to ensure that the router is reliably and sufficiently supplied. The information on the power supply and the device label (see examples) serve as a valuable guide to ensure that the power supply meets the device’s requirements.
For further information on connecting the power supply, you can use the included Start Guide of the router or the available "Manual". You can find these under the following links for the respective model in the "Manuals" section under "Documents to Download".
- Details LR77 Series
- Details ICR-2700/2800 Series
- Details ICR-3200 Series
- Details ICR-4100/4200 Series
